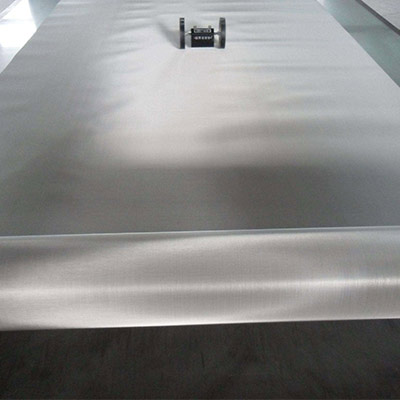

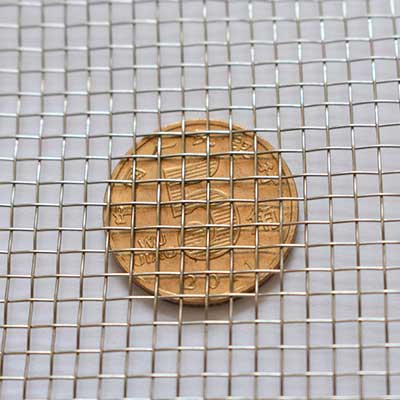

Stainless Steel Wire Cloth

material:stainless steel
roll width:1m to 48''
roll length:30m to 100''
sample: available
Product description: stainless steel wire cloth;stainless steel mesh screen;filter screen;wire fabric;100mesh;60mesh;80mesh;90mesh;120mesh;150mesh
INQUIRY

Stainless Steel Wire Cloth is made by high quality of stainless steel wire, it is widely used for filter system as filtration media. We can provide advice for you to choose specification.

Materials: SUS302, 304, 316, 304L and 316L stainless steel wires, etc.

Application: strianer screen, filter system, Mining industry, petroleum, chemical industry, food, medicine, machinofacture, scientific research, aviation, and other industries.

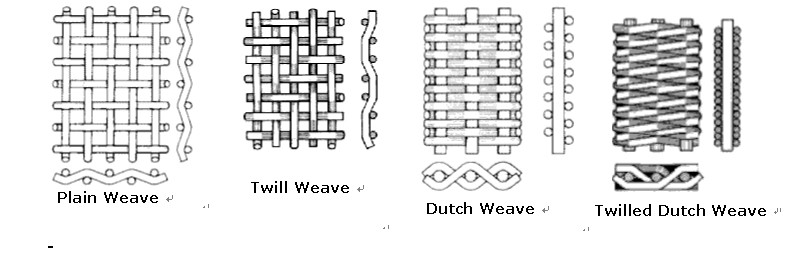

Typical Weaving: Plain Weave, Twill Weave , Plain Dutch Weave, Twilled Dutch Weave.

Specification(Plain Weave):

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB) /100 Square Foot
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.009	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.007	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.004	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.63
