Welded Wire Mesh

Specification List of Welded Wire Mesh Rolls

Opening

Wire Diameter

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22, 23, 24

3/8" x 3/8"

10.6mm x 10.6mm

19, 20, 21, 22

1/2" x 1/2"

12.7mm x 12.7mm

16, 17, 18, 19, 20, 21, 22, 23

5/8" x 5/8"

16mm x 16mm

18, 19, 20, 21,

3/4" x 3/4"

19.1mm x 19.1mm

16, 17, 18, 19, 20, 21

1" x 1/2"

25.4mm x 12.7mm

16, 17, 18, 19, 20, 21

1-1/2" x 1-1/2"

38mm x 38mm

14, 15, 16, 17, 18, 19

1" x 2"

25.4mm x 50.8mm

14, 15, 16

2" x 2"

50.8mm x 50.8mm

12, 13, 14, 15, 16

Technical Note:

1, Standard roll length: 30m;width: 0.5m to 1.8m.

2, Special sizes available at request.

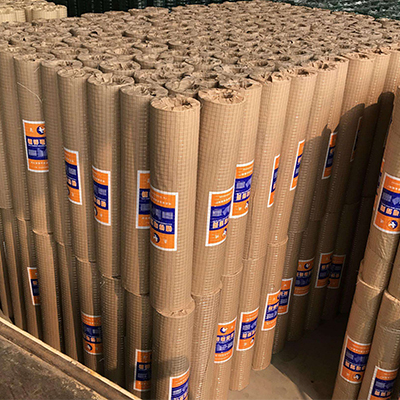

3, Packing: in waterproof paper in rolls. Custom packing available at request.
