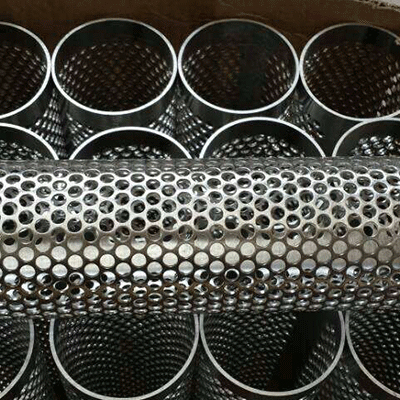

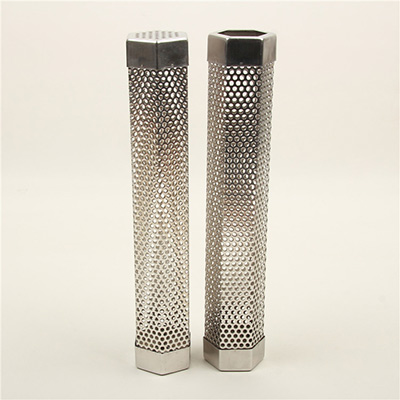

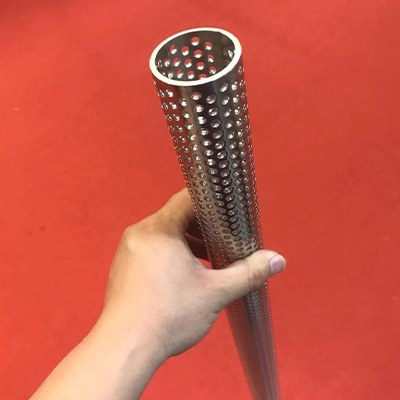

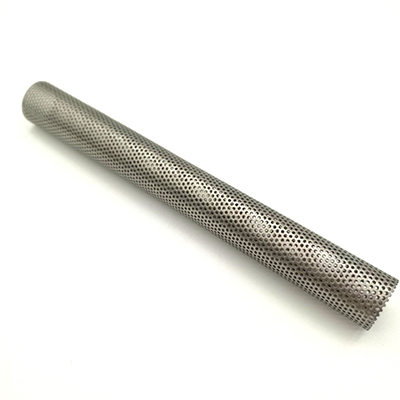

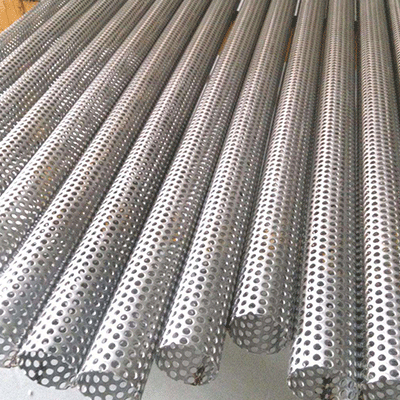

Perforated Metal Tubes
Perforated Metal Tubes

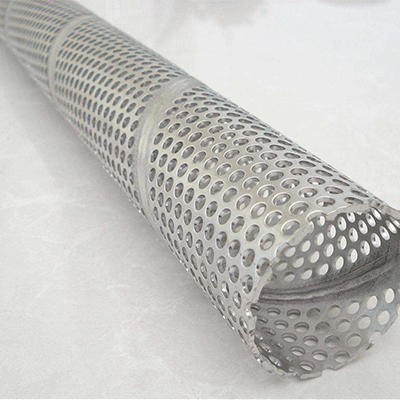

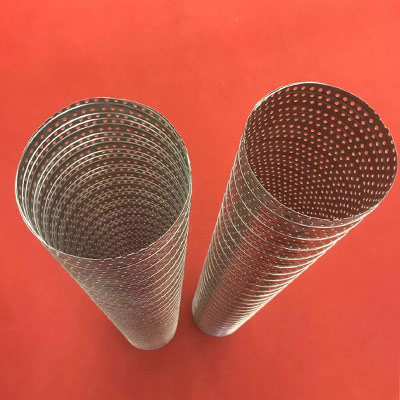

- Type: Perforated Tube or Spiral Perforated Tube
- Hole Size: from 0.5mm to 20mm （can be customized）
- Diameter and Length: any size can be make as your requirements.
- Surface Finish: electropolishing, galvanization, powder coated.
- Product description: perforated metal tubes,perforated tubes, spiral perforated tube,filtration tubes
Perforated metal tubes are used throughout many industries for a variety of applications, the most common primary applications are filtration and exhaust systems, we offer an array of designs to fit your applications which include:
- Oil Filtration
- Hydraulic Filtration
- Agricultural Strainers & Filter Elements
- Light Diffusion
- Food Processing
- Acoustical Dampening
- Oil Rig Filtration
We own the advanced automatic punching machines and welding machines, production efficiency makes our price more reasonable, high quality of raw materials make the perforated metal tubes more competitive, all products can be customized according to your requirements.
Material: stainless steel 304/304L/316/316L, mild steel, galvanized plate, stainless steel plate, copper sheet, aluminum plate, ect.
Holes Pattern: The most required are round, square, slotted and rectangular.
Wall Thickness: from 0.3mm to 12mm.
Hole Diameter: from 0.5mm to 20mm
Open Area: 23%-69%
Tube Outer Diameter:from 20mm to 800mm
Tube Length: from 20mm to 3000mm
Surface Finish: electropolishing, galvanization, powder coated.
Welding Process: 1.argon arc welding 2. spot welding 3.spiral welding
End Finish: Margin or No margin
Perforated Pattern: please visit Perforated Metal Sheet for reference.
Holes Specification
|
Hole size (diameter) |
Hole center |
Hole type |
Open area |
|
Hole size (diameter) |
Hole center |
Hole type |
Open area |
|
0.02" |
0.043" |
45° staggered |
20% |
|
5/32" |
3/16" |
60° staggered |
63% |
|
0.023" |
0.042" |
Straight |
22% |
|
5/32" |
1/4" |
60° staggered |
34% |
|
0.027" |
0.05" |
Straight |
23% |
|
3/16" |
7/32" |
60° staggered |
67% |
|
1/32" |
1/6" |
45° staggered |
23% |
|
3/16" |
1/4" |
60° staggered |
50% |
|
0.033" |
0.055" |
Straight |
28% |
|
3/16" |
5/16" |
60° staggered |
32% |
|
0.045" |
0.066" |
Straight |
36% |
|
3/16" |
3/8" |
60° staggered |
23% |
|
0.045" |
5/64" |
45° staggered |
32% |
|
3/16" |
1/2" |
Straight |
10% |
|
0.05" |
0.083" |
Straight |
29% |
|
1/4" |
5/16" |
60° staggered |
58% |
|
3/64" |
3/32" |
60° staggered |
23% |
|
1/4" |
3/8" |
60° staggered |
42% |
|
1/16" |
3/32" |
60° staggered |
41% |
|
1/4" |
3/8" |
Straight |
34% |
|
1/16" |
7/64" |
60° staggered |
27% |
|
1/4" |
1/2" |
60° staggered |
23% |
|
1/16" |
1/8" |
60° staggered |
23% |
|
1/4" |
1/2" |
Straight |
20% |
|
5/64" |
1/8" |
60° staggered |
36% |
|
5/16" |
7/16" |
60° staggered |
46% |
|
3/32" |
5/32" |
60° staggered |
33% |
|
3/8" |
1/2" |
60° staggered |
52% |
|
3/32" |
3/16" |
60° staggered |
23% |
|
3/8" |
9/16" |
60° staggered |
40% |
|
0.117" |
5/32" |
60° staggered |
51% |
|
3/4" |
1" |
60° staggered |
51% |
|
1/8" |
3/16" |
60° staggered |
40% |
|
1/2" |
11/16" |
60° staggered |
49% |
|
1/8" |
7/32" |
60° staggered |
30% |
|
5/8" |
7/8" |
60° staggered |
46% |
|
1/8" |
1/4" |
60° staggered |
23% |
|
1" |
1-3/8" |
60° staggered |
48% |
|
9/64" |
3/16" |
60° staggered |
51% |
